Application Industry
Advertising signs,craft gifts,crystal jewelry,paper cutting technology,architectural models,lighting,printing and
packaging,electronic appliances,clothing bags,photo frame production and other industries.
Application Materials
Wood products,Plywood,Acrylic,Plastic,Cloth,Leather,Paper,Rubber,Bamboo,Marble,Double layer plastic,glass,wine bottles etc.
Technical Parameters
parameter
| Model |
HB-6090D |
| Processing Area |
900mm*600mm |
| Laser Power |
50W/60W/80W/100W/130W |
| Worktable |
Honeycomb or Blade |
| Engraving Speed |
0mm-500mm/s Max |
| Cutting Speed |
60mm/s |
| Working Table Lifting Height |
200mm adjustable |
| cutting thickness |
0mm-20mm(depends on materials) |
| Data Transfer Interface |
USB/U Disk/Ethernet cable/WIFI(optional parts) |
| Minimum Shapping Character |
Character:2mm*2mm, Leter: 1mm*1mm |
| Working Voltage |
(220V or 110V±10% 50HZ/60HZ |
| Resetting Positioning |
Accuracy less than or equal to 0.01mm |
| Working Temperature |
0℃-45℃ |
| Working Humidity |
5%-90% |
| Graphic Format Supported |
PLT/DXF/BMP/JPG/GIF/PGN/TIF |
| Operation Systerm |
2000XP/VISTA/Windoes 7/8/10 |
| Software |
CoreIDRAW |
| Optional Parts |
Rotary Axis, Water Chiller |
| Package |
Polywood |

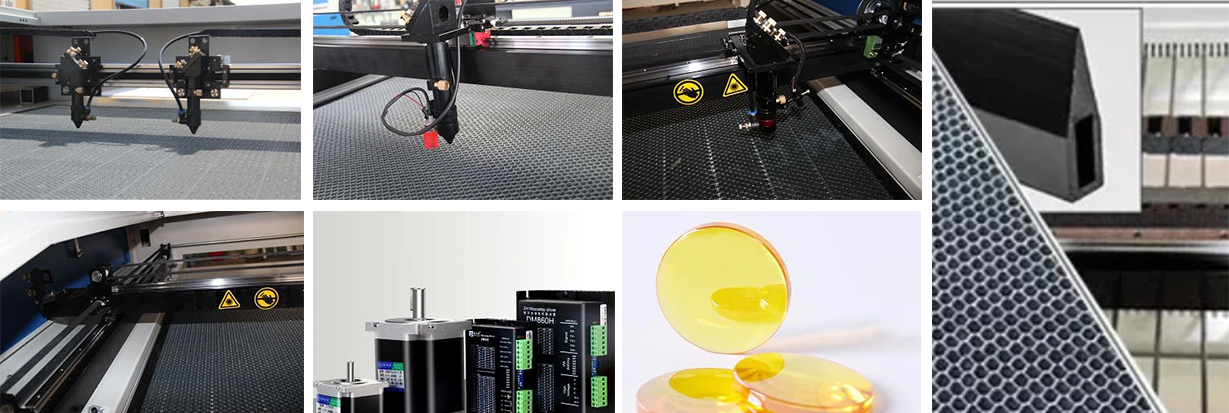

Details
● Double laser heads are available
Laser Engraving Machine for wood adopts double laser heads are available which can run at the same time, the work efficiency is doubled.
● Red Light Positioning
Using red light positioning, So that there is a visible, non-contact point to guide the operation process throughout the production process. It has the advantages of convenient production operation and high production efficiency.
● Industrial Grade Laser Head
The industrial-grade laser head is also available which can stop the focus lens from polluting. It has the function of red light positioning and blowing flame retardant which will make the effect of engraving and cutting better.
● High-precision Linear Guide
3-wire guide rail ensure stable operation, high precision and long life.
● Electric Machinery
Brand stepper motor guarantees machine accuracy, stability and efficiency.
● Imported Focusing Lens
Zinc selenide (ZnSe) crystal imported from the United States is selected with a light transmittance of 99.8%, a fine spot and can withstand 200W laser power.
● Honeycomb and Blade Platforms are available
Laser Engraving Machine for wood has honeycomb or blade platform. The honeycomb platform is suitable for soft materials such as cloth and leather. The blade platform has good heat dissipation which is suitable for some hard materials like Acrylic and wood.
Accessories Shipped With The Machine
Optional Accessories
Packaging Process
Factory And Exhibition
Certifications
Hot Tags: laser engraving machine for wood, China laser engraving machine for wood manufacturers, suppliers, factory, Semi closed Fiber Laser Engraving Machine, 3D CO2 Laser Engraving Machine, 3d Crystal Laser Inside Engraving Machine, Acrylic Laser Engraving Machine, Deep Laser Engraving Machine, Jade Laser Engraving Machine
Compostions and Package
Main Accessories
FAQ
About the Laser
What materials can I cut or engrave with a CO2 laser?
CO2 laser machine can cut, engrave, mark a wide range of non-metal and organic materials, such as acrylics, woods, plywood, MDF, paper, cardboard, fabrics, leather, glass, stone, ceramics, and more.
What materials can I cut or engrave with a Fiber laser?
Fiber Laser can cut, engrave, mark on metals, such as steel, stainless steel, aluminum, brass, copper, silver, gold, and on some non-metal polymers, wood, fabric.
Shipping
How is the machine packaged?
Laser equipment is shipped in a wooden box with Styrofoam to protect fragile parts
How long does it take to ship by air?
After we receive the order, send the machine to one of the main DHL, FEDEX and TNT offices in China. Smaller machines are shipped by courier service. Typically, it takes 10 to 14 days.
How long does it take to ship by sea?
Larger machines are shipped by sea. Usually, it takes 6 to 10 weeks. We can help you arrange delivery directly to your location.
Customer Support
Is there a warranty?
Manufacturers extend the warranty on their devices to 18 months and replace parts at the factory purchase price.
